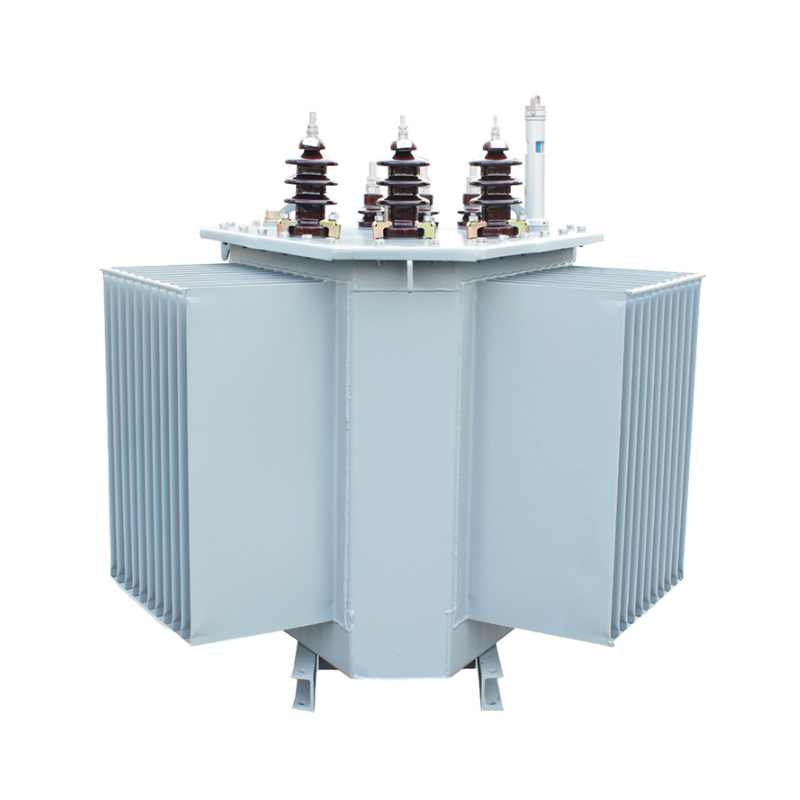

S-M.RL(E3 Class)

6-10kV Double Winding Non Excitation Voltage Regulating Fully Sealed Oil Immersed Distribution Transformer
Rated Voltage: 6~10kV
Rated capacity: 80-1600KVA
Propose: Power transmission and distribution system、industrial power supply、new energy power generation
Temperature: -40℃~+40℃、Altitude≤1000m
Standards: IEC 60076、IEC TS 60076-20
Product Consultation Contact Us
S-M.RL(E3 Class) - p2
S-M.RL(E3 Class) - p2
Application & Technical Parameters
Range of Application

The S13-M.RL-80-1600/10 fully sealed oil immersed transformer is suitable for use in power systems with an AC frequency of 50Hz and a rated working voltage of 10kV or below. It is used as a distribution transformer in enterprises such as petroleum, metallurgy, chemical, textile, light industry, and places with high dust.

The product meets the standards of GB1094.1-5 and GB/T25438.

Model Definition


Main technical parameters


Rated capacity
     （kVA）

Voltage combination

Connection symbol

No-load loss
     （W）

Load loss
     （W）

No-load current
     （%）

Short circuit impedance
     （%）

Weight（kg）

High pressure（kV）

Tapping range of high voltage

Low pressure（kV）

Oil weight

Total weight

80

6
6.3
6.6
10
10.5
11

5%
2 2.5%

0.4

Yyno
Dyn11

130

1310/1250

0.22

4

135

520

100

150

1580/1500

0.21

145

580

125

170

1890/1800

0.20

155

645

160

200

2310/2200

0.19

180

740

200

240

2730/2600

0.18

200

890

250

290

3200/3050

0.17

220

990

315

340

3830/3650

0.16

240

1130

400

410

4520/4300

0.16

270

1320

500

480

5410/5150

0.16

330

1630

630

570

6200

0.15

4.5

375

1880

800

700

7500

0.15

435

2245

1000

830

10300

0.14

530

2700

1250

970

12000

0.13

600

3100

1600

1170

14500

0.12

780

3900

Note: The load loss values above the diagonal line in the table apply to the Dyn11 or Yzn11 connection group, and the load loss values below the diagonal line apply to the Yyn0 connection group.

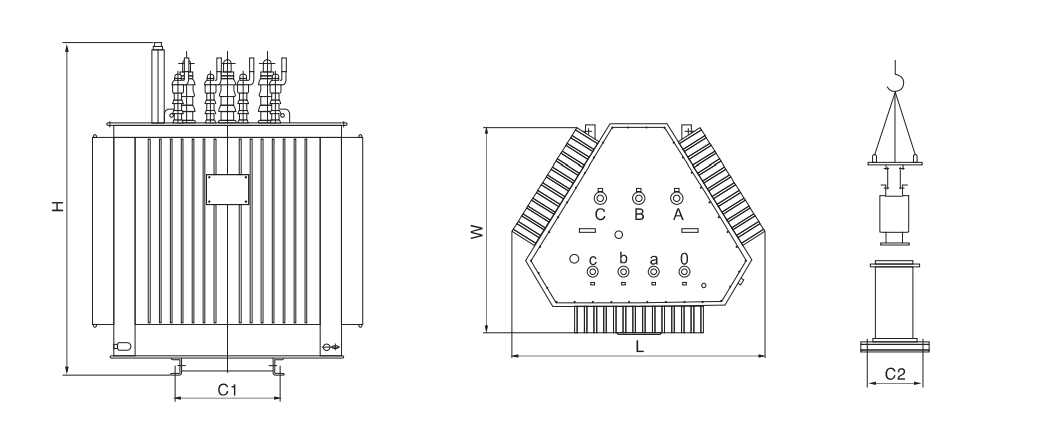

Dimensions
