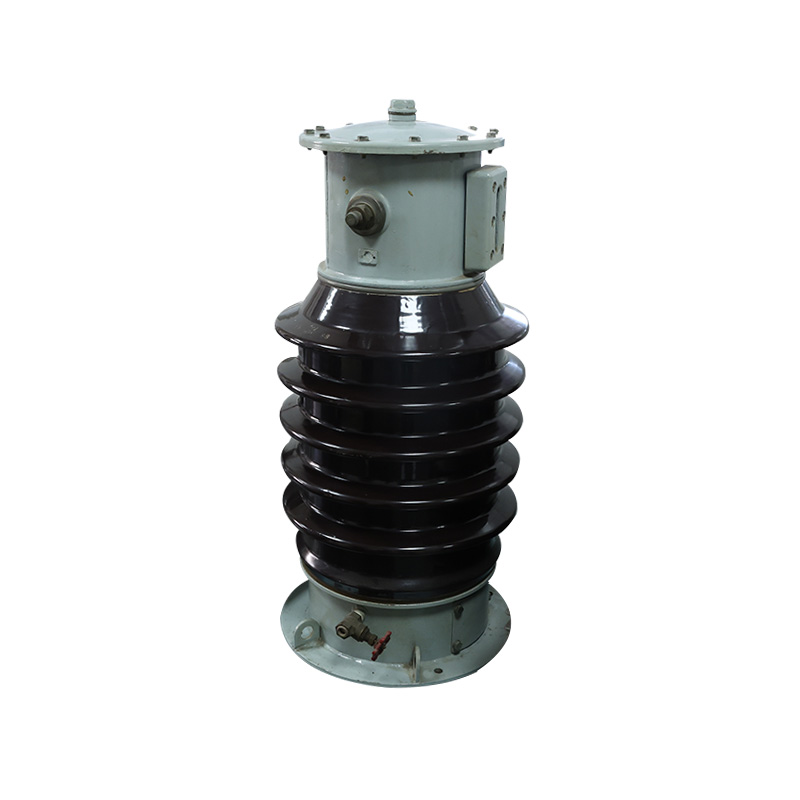

LCWD-35

current transformer
Rated voltage: 35KV
Rated current: 5-1500A
Propose: Current measurement、 electric energy metering、 relay protection、 compatible with substations、 lines and power distribution systems for industrial and mining enterprises
Temperature: -25°C~+40°C、Alititude<2000m
Standards: IEC 185
Product Consultation Contact Us
LCWD-35 - 大图
LCWD-35 - 大图
Application & Technical Parameters

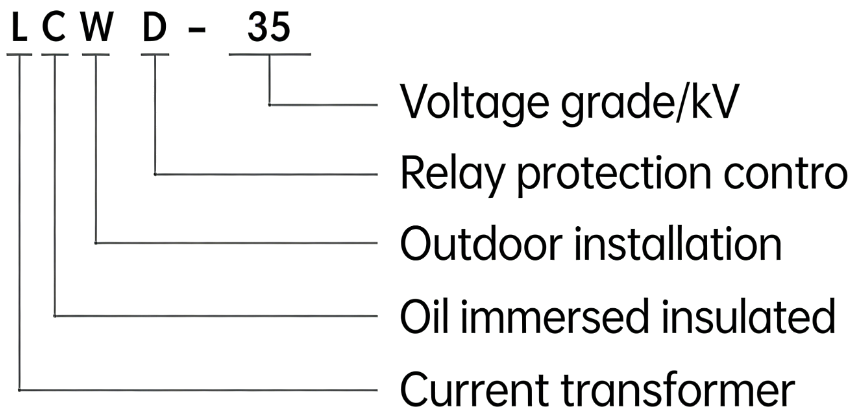

Type description


Main technical parameters

1、Rated insulation level: 40.5/95/185KV

2、Rated primary current: 5A

3、Rated primary current, accuracy classes combination,rated output,dynamic and thermal current see form

4、The external insulation creepage distance:General - > 735; W2= 1100

Rated primary current(A)

Accuracy level combination

Rated output (VA)

short-time thermal
     current(kA/s)

Dynamic stabilization current(kA)

0.2(s)

0.5(s)

10P15

              5





      0.5/10P15
       0.2/10P15
       0.2/0.5
       0.2/0.2

15

25

50

0.375

0.95

             10

0.75

1.9

             15

1.12

2.9

             20

1.5

3.8

             30

2.25

5.7

             40

3

7.6

             50

3.75

9.6

             75

5.62

14.5

            100

7.5

19.2

            200

11.25

28.7

300

15

38.3

400

22.5

57.5

600

30

76.5

800



45

115

1000



45

115

1200



45

115

1500



45

115

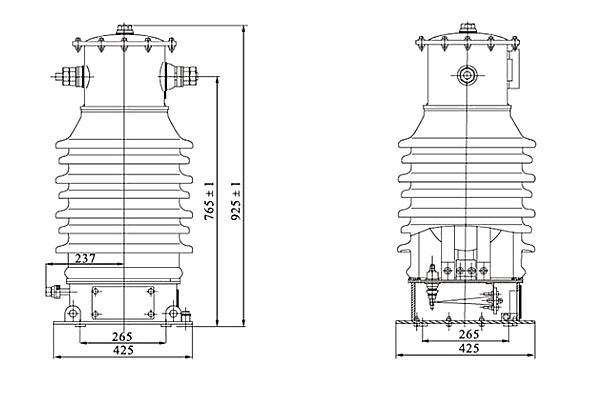

Outline and intallation dimensions
