♦ Ambient temperature: -15r~+40r；
♦ Altitude: <1000m;
♦ Relative humidity: daily average <95%, monthly average <90%；
♦ Earthquake intensity: <8 level;
♦ Places without fire, explosion hazard, serious filthy, chemical corrosion, as well as intense vibration.
No | Item | Unit | Value |
1 | Rated voltage | kV | 40.5 |
2 | Rated current | A | 1250 1600, 2000, 2500 |
3 | Rated short circuit breaking current | kA | 25, 31.5 |
4 | Dynamic current (peak) | 63, 80 | |
5 | 4s thermal stability current | 25, 31.5 | |
6 | Rated short circuit making current (peak) | 63, 80 | |
7 | Rated short circuit current breaking number | Times | 20 |
8 | Rated operating sequence |
| O-0.3s-CO-180s-CO |
9 | 1 min power frequency withstand voltage | kV | 95 |
10 | Rated lightning impulse withstand voltage | 185 | |
11 | Mechanical life | Times | 10000 |
12 | Rated single capacitor bank switching current | A | 630 |
13 | Rated back-to-back capacitor bank current | 400 | |
14 | Rated voltage of energy storage motor | V | AC/DC 220/110 |
15 | Power of energy storage motor | W | ≤230 |
16 | Energy storage time | s | ≤15 |
17 | Ratea voltage of closing/opening coil | V | DC 220/110 |
18 | Rated current of closing/opening coil | A | 1.05(110V) 0.96(220V) |
19 | Clearance between open contacts | mm | 20±2 |
20 | Contact travel | 7.5±1.5 | |
21 | Three phase opening and closing asynchronism | ms | ≤2 |
22 | Contact closing bounce time | ≤3 | |
23 | Main circuit resistance (not include contact arm) | μΩ | ≤40 |

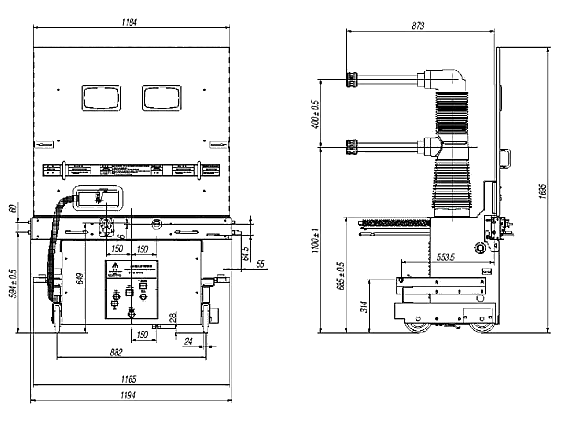

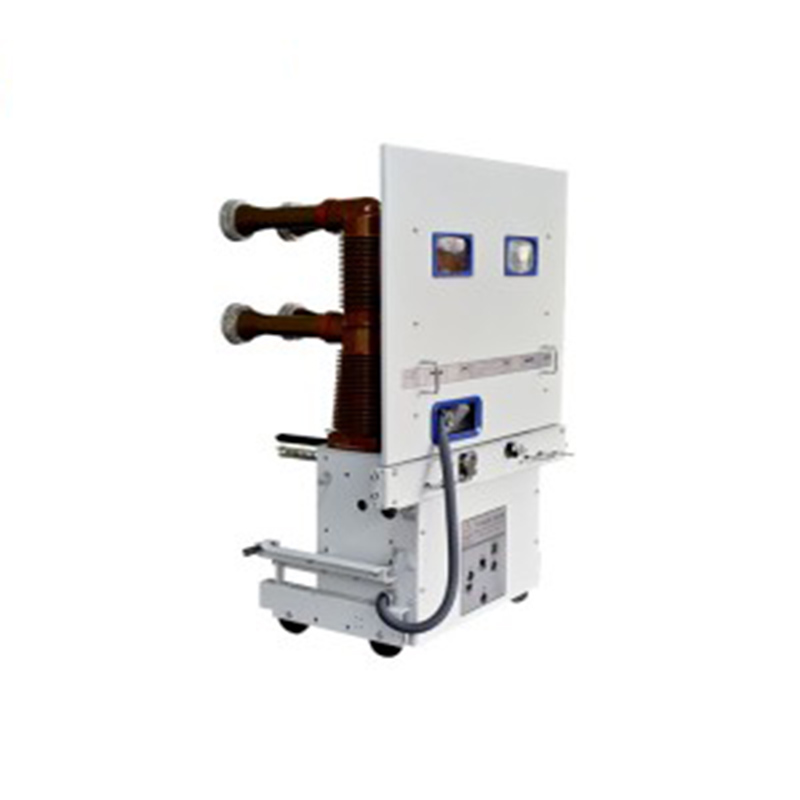

♦ Draw out type assembled pole

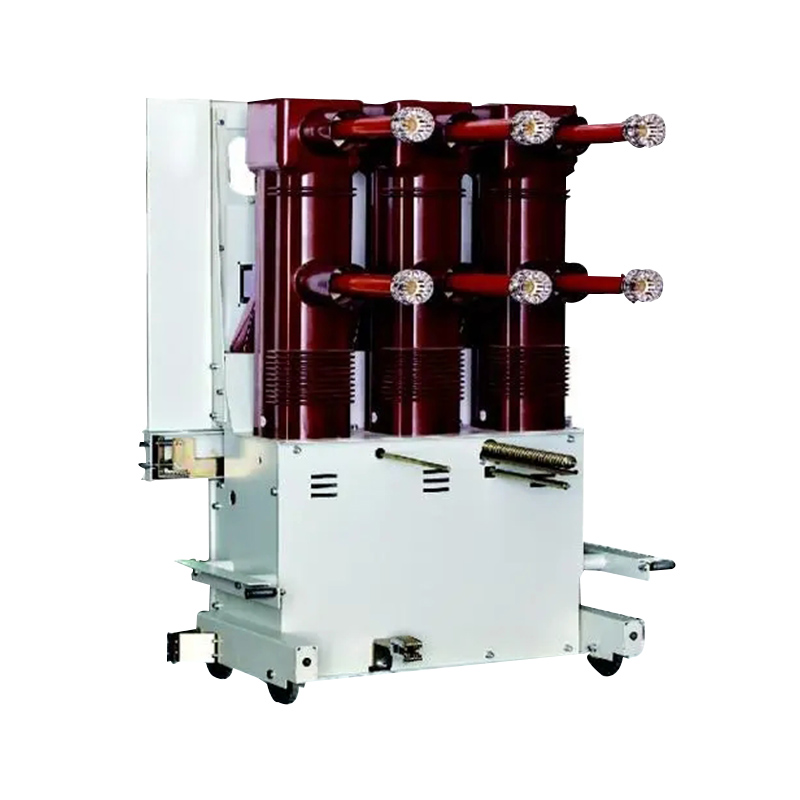

♦ Draw out type embedded pole
