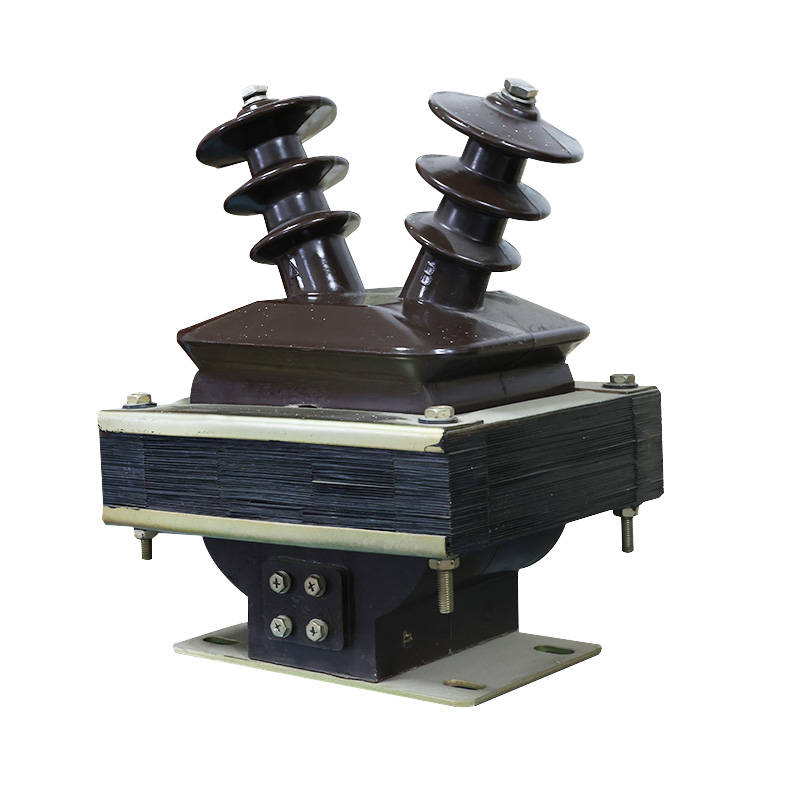

JDZ-10

Voltage Transformer
Rated voltage: 10KV
Rated secondary current: 5A/1A
Propose: Electric energy metering、 voltage monitoring and display、relay protection signal source、 distribution network automation collection
Temperature: -5°C~+40°C、Alititude<1000m
Standards: IEC 60044-2、IEC 61869-3
Product Consultation Contact Us
JDZ-10 - 大图
JDZ-10 - 大图
Application & Technical Parameters

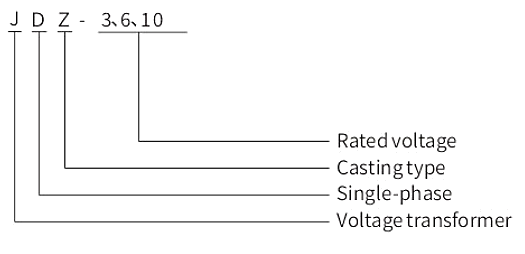

Model Meaning


Main Technical parameters


Model

Rated voltage ratio(KV)

Accuracy level combination

Rated
     output  (VA)

     Ultimate
     output

      (VA)

Rated

insulation
     level(KV)



Remarks



JDZ-3


JDZ-6


JDZ-10

3/0.1

                0.2
                0.5
                 1
                 3

   20
   30
   60
   300





   500

3.6/25/40



6/0.1

7.2/32/60

10/0.1




12/42/75

10/0.22

10/0.1/0.1

             0.2/0.5

20/30

300/300

10/0.1/0.22

               0.5/3

30/100

300/500

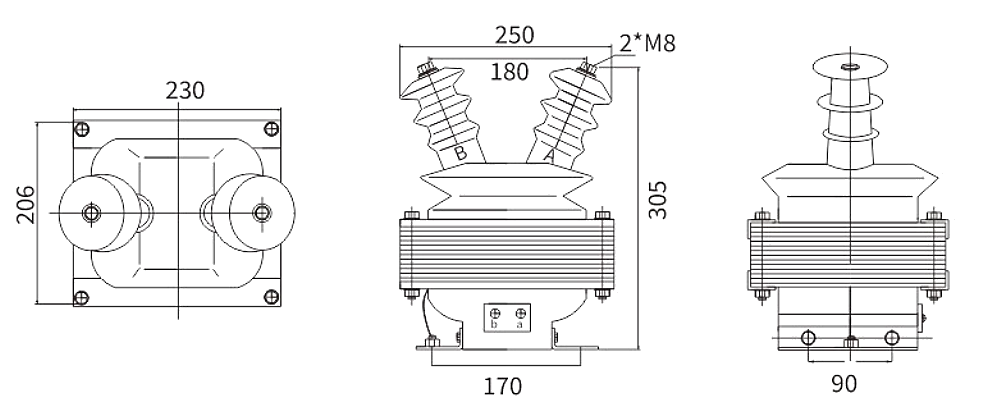

Outline and installation dimensions drawing


Wiring Diagram
