LZZBJ9-10(12)A1

Current Transformer
Rated voltage: 10/12KV
Rated current: 5-3000A
Propose: Electric energy metering、 current measurement during operation、 relay protection、 distribution network automation collection
Temperature: -5°C~+40°C、Alititude<1000m
Standards: IEC 60044-1/-2、IEC 61869-2
Product Consultation Contact Us

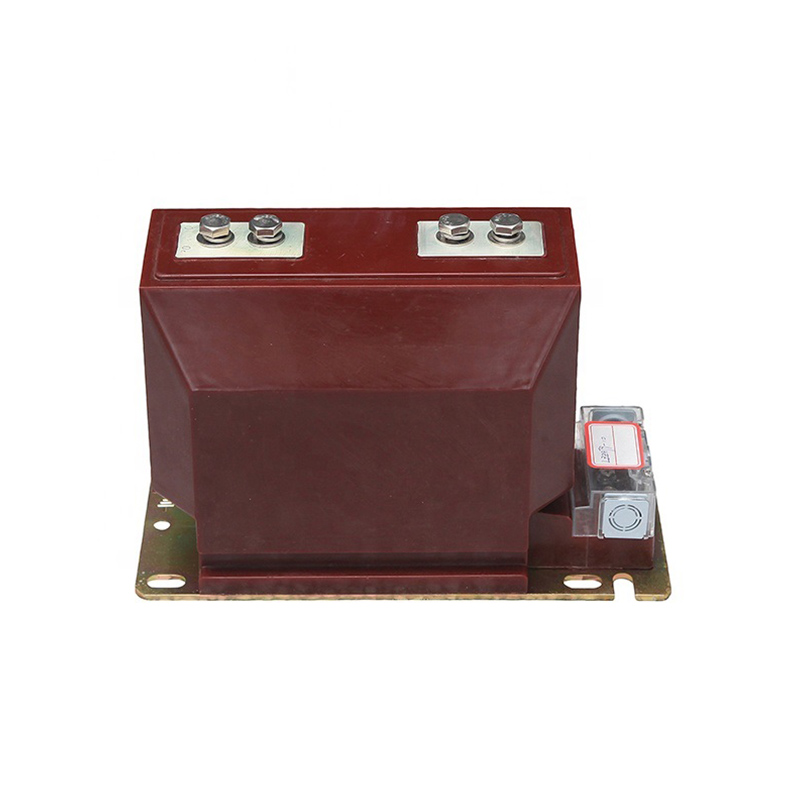

LZZBJ9-10(12)A1 - 华通大图

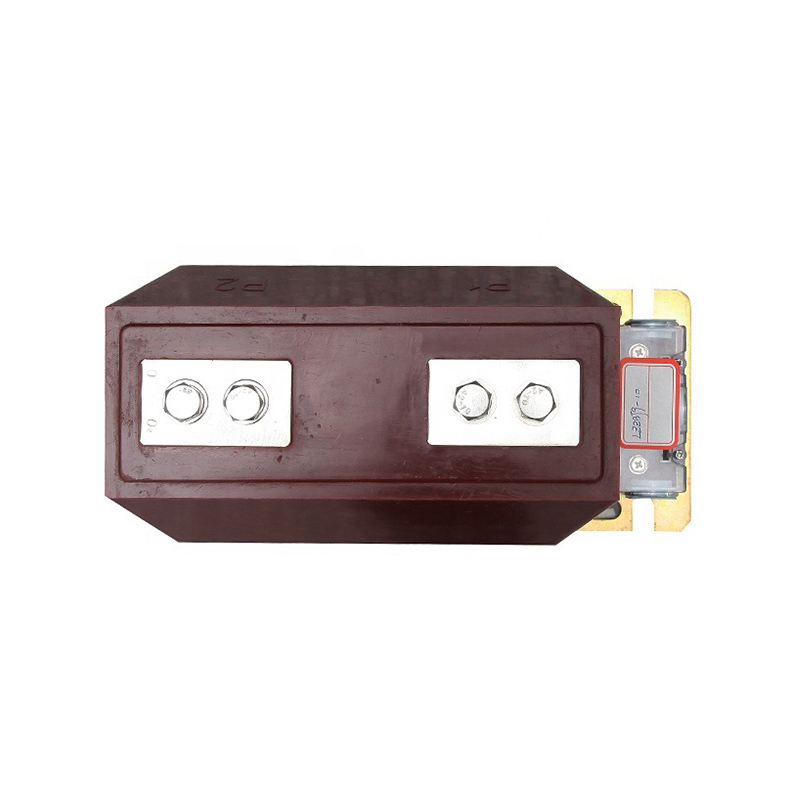

LZZBJ9-10(12)A1 - 华通大图2

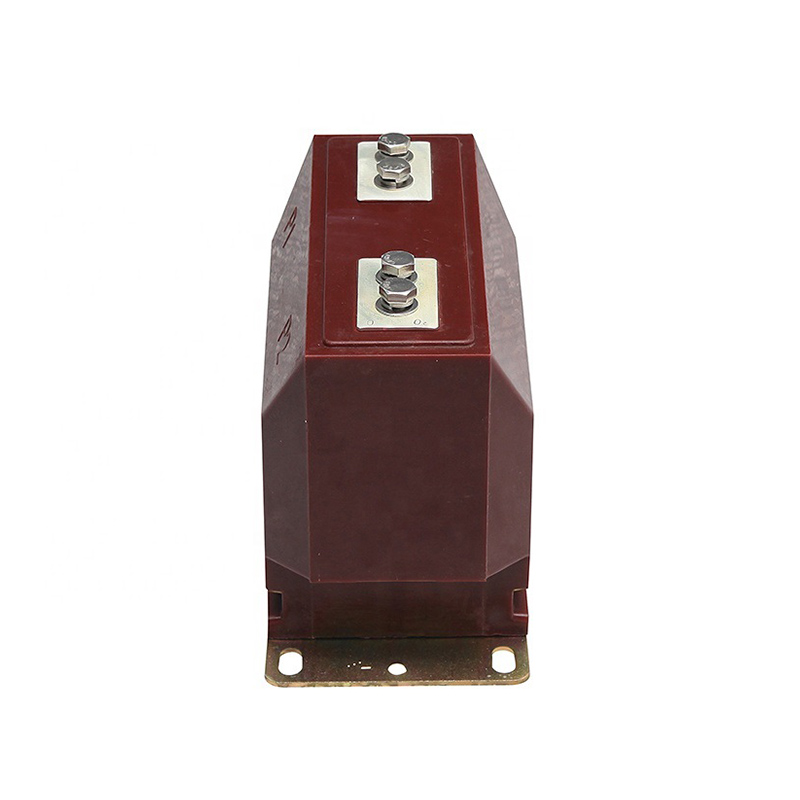

LZZBJ9-10(12)A1 - 华通大图3

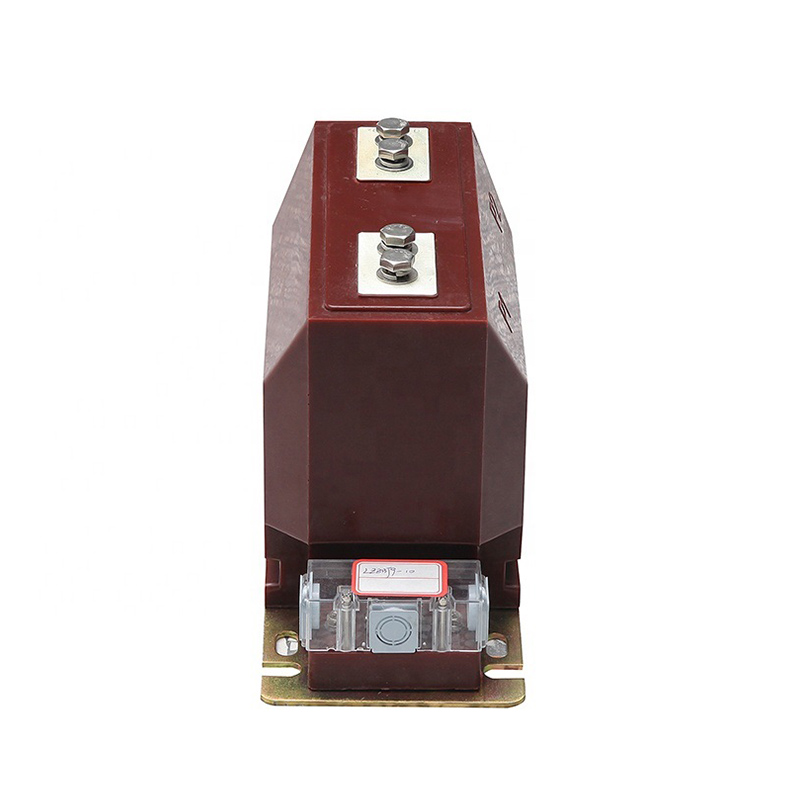

LZZBJ9-10(12)A1 - 华通大图4

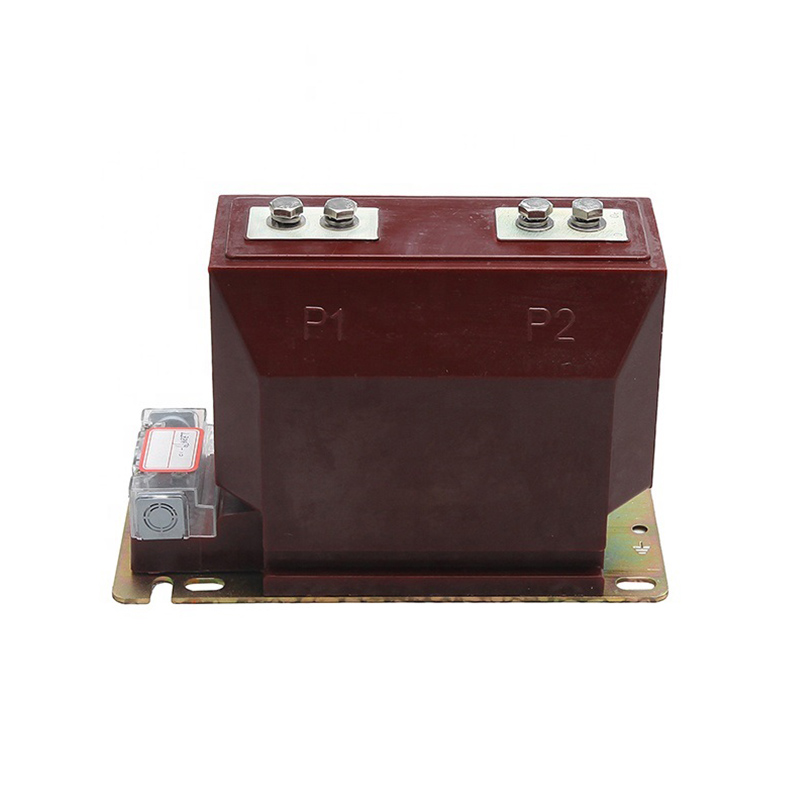

LZZBJ9-10(12)A1 - 华通大图5
LZZBJ9-10(12)A1 - 华通大图
LZZBJ9-10(12)A1 - 华通大图2
LZZBJ9-10(12)A1 - 华通大图3
LZZBJ9-10(12)A1 - 华通大图4
LZZBJ9-10(12)A1 - 华通大图5
Application & Technical Parameters

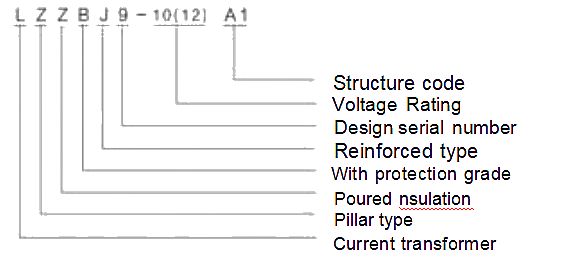

Model Meaning


Main Technical parameters

Model

Rated primary current（A）

Accuracy level combination

Rated output(VA)

Rated

   short-time
     thermal
   current(kA/s)

Rated dynamic
    Stabilization
     current(kA)

LZZBJ9-10(12)A1

5

     0.2(S)
     0.5(S)
     0.2(S)/0.2(S)
     0.2(S)/0.5(S)
     0.2(S)/10P10
     0.5(S)/10P10
     0.2(S)/0.5(S)/10P10

    10
     10
     10/10
     10/10
     10/15
     10/15

0.5

1.25

10

1

2.5

15

1.5

3.75

20

2.0

5.0

30

3

7.5

40

4.0

10

50

5

12.5

75

7.5

25

100

10

25

150

15

37.5

200-600

45

112.5

800-1200

63

130

1500-3000

80

160

Outline and installation dimensions drawing
